构建自定义 SQL 智能体

export LANGSMITH_TRACING="true"
export LANGSMITH_API_KEY="..."

import pathlib
import requests

url = "https://storage.googleapis.com/benchmarks-artifacts/chinook/Chinook.db"
local_path = pathlib.Path("Chinook.db")

if local_path.exists():
    print(f"{local_path} already exists, skipping download.")
else:
    response = requests.get(url, timeout=60)
    if response.status_code == 200:
        local_path.write_bytes(response.content)
        print(f"File downloaded and saved as {local_path}")
    else:
        print(f"Failed to download the file. Status code: {response.status_code}")

import sqlite3

con = sqlite3.connect("Chinook.db")
cursor = con.cursor()

cursor.execute("SELECT name FROM sqlite_master WHERE type='table';")
tables = [row[0] for row in cursor.fetchall() if not row[0].startswith("sqlite_")]

print("Dialect: sqlite")
print(f"Available tables: {tables}")

cursor.execute("SELECT * FROM Artist LIMIT 5;")
print(f"Sample output: {cursor.fetchall()}")
con.close()

Dialect: sqlite
Available tables: ['Album', 'Artist', 'Customer', 'Employee', 'Genre', 'Invoice', 'InvoiceLine', 'MediaType', 'Playlist', 'PlaylistTrack', 'Track']
Sample output: [(1, 'AC/DC'), (2, 'Accept'), (3, 'Aerosmith'), (4, 'Alanis Morissette'), (5, 'Alice In Chains')]

import sqlite3
from langchain.tools import tool

# 以下是用于演示的最小工具集。


@tool
def sql_db_list_tables() -> str:
    """输入是一个空字符串，输出是数据库中以逗号分隔的表名列表。"""
    con = sqlite3.connect("Chinook.db")
    try:
        cursor = con.cursor()
        cursor.execute("SELECT name FROM sqlite_master WHERE type='table';")
        tables = [
            row[0]
            for row in cursor.fetchall()
            if not row[0].startswith("sqlite_")
        ]
        return ", ".join(tables)
    finally:
        con.close()


@tool
def sql_db_schema(table_names: str) -> str:
    """此工具的输入是一个以逗号分隔的表名列表，输出是这些表的 schema 和示例行。
    请务必先调用 sql_db_list_tables 确保这些表实际存在！
    示例输入: table1, table2, table3"""
    con = sqlite3.connect("Chinook.db")
    try:
        cursor = con.cursor()
        cursor.execute("SELECT name FROM sqlite_master WHERE type='table';")
        valid_tables = {
            row[0] for row in cursor.fetchall() if not row[0].startswith("sqlite_")
        }
        results = []
        for table in table_names.split(","):
            table = table.strip()
            if table not in valid_tables:
                results.append(
                    f"Error: table_names {{{table!r}}} not found in database"
                )
                continue
            cursor.execute(
                "SELECT sql FROM sqlite_master WHERE type='table' AND name=?;",
                (table,),
            )
            schema_row = cursor.fetchone()
            if schema_row:
                results.append(schema_row[0])
                try:
                    quoted_table = '"' + table.replace('"', '""') + '"'
                    cursor.execute(f"SELECT * FROM {quoted_table} LIMIT 3;")
                    rows = cursor.fetchall()
                    if rows:
                        col_names = [description[0] for description in cursor.description]
                        results.append(
                            f"/*\n3 rows from {table} table:\n"
                            + "\t".join(col_names)
                            + "\n"
                            + "\n".join(
                                "\t".join(str(x) for x in row) for row in rows
                            )
                            + "\n*/"
                        )
                except Exception as e:
                    results.append(f"Error fetching sample rows: {e}")
        return "\n\n".join(results)
    finally:
        con.close()


@tool
def sql_db_query(query: str) -> str:
    """此工具的输入是一个详细且正确的 SQL 查询语句，输出是数据库的结果。
    如果查询不正确，将返回一条错误消息。
    如果返回错误，请重写查询，检查查询语句，并再次尝试。
    如果遇到 `Unknown column 'xxxx' in 'field list'` 问题，请使用 sql_db_schema 查询正确的表字段。"""
    con = sqlite3.connect("Chinook.db")
    try:
        cursor = con.cursor()
        cursor.execute(query)
        res = cursor.fetchall()
        return str(res)
    except Exception as e:
        return f"Error: {e}"
    finally:
        con.close()


tools = [sql_db_list_tables, sql_db_schema, sql_db_query]

# 使用一个不同的循环变量，以避免遮蔽后续重用的 `tool` 装饰器（用于包装查询工具供人工审查）。
for t in tools:
    print(f"{t.name}: {t.description}\n")

sql_db_list_tables: Input is an empty string, output is a comma-separated list of tables in the database.

sql_db_schema: Input to this tool is a comma-separated list of tables, output is the schema and sample rows for those tables.
    Be sure that the tables actually exist by calling sql_db_list_tables first!
    Example Input: table1, table2, table3

sql_db_query: Input to this tool is a detailed and correct SQL query, output is a result from the database.
    If the query is not correct, an error message will be returned.
    If an error is returned, rewrite the query, check the query, and try again.
    If you encounter an issue with Unknown column 'xxxx' in 'field list', use sql_db_schema to query the correct table fields.

from typing import Literal

from langchain.messages import AIMessage
from langchain_core.runnables import RunnableConfig
from langgraph.graph import END, START, MessagesState, StateGraph
from langgraph.prebuilt import ToolNode

get_schema_tool = next(tool for tool in tools if tool.name == "sql_db_schema")
get_schema_node = ToolNode([get_schema_tool], name="get_schema")

run_query_tool = next(tool for tool in tools if tool.name == "sql_db_query")
run_query_node = ToolNode([run_query_tool], name="run_query")


# Example: create a predetermined tool call
def list_tables(state: MessagesState):
    tool_call = {
        "name": "sql_db_list_tables",
        "args": {},
        "id": "abc123",
        "type": "tool_call",
    }
    tool_call_message = AIMessage(content="", tool_calls=[tool_call])

    list_tables_tool = next(tool for tool in tools if tool.name == "sql_db_list_tables")
    tool_message = list_tables_tool.invoke(tool_call)
    response = AIMessage(f"Available tables: {tool_message.content}")

    return {"messages": [tool_call_message, tool_message, response]}


# Example: force a model to create a tool call
def call_get_schema(state: MessagesState):
    # Note that LangChain enforces that all models accept `tool_choice="any"`
    # as well as `tool_choice=<string name of tool>`.
    llm_with_tools = model.bind_tools([get_schema_tool], tool_choice="any")
    response = llm_with_tools.invoke(state["messages"])

    return {"messages": [response]}


generate_query_system_prompt = """
You are an agent designed to interact with a SQL database.
Given an input question, create a syntactically correct {dialect} query to run,
then look at the results of the query and return the answer. Unless the user
specifies a specific number of examples they wish to obtain, always limit your
query to at most {top_k} results.

You can order the results by a relevant column to return the most interesting
examples in the database. Never query for all the columns from a specific table,
only ask for the relevant columns given the question.

DO NOT make any DML statements (INSERT, UPDATE, DELETE, DROP etc.) to the database.
""".format(
    dialect="sqlite",
    top_k=5,
)


def generate_query(state: MessagesState):
    system_message = {
        "role": "system",
        "content": generate_query_system_prompt,
    }
    # We do not force a tool call here, to allow the model to
    # respond naturally when it obtains the solution.
    llm_with_tools = model.bind_tools([run_query_tool])
    response = llm_with_tools.invoke([system_message] + state["messages"])

    return {"messages": [response]}


check_query_system_prompt = """
You are a SQL expert with a strong attention to detail.
Double check the {dialect} query for common mistakes, including:
- Using NOT IN with NULL values
- Using UNION when UNION ALL should have been used
- Using BETWEEN for exclusive ranges
- Data type mismatch in predicates
- Properly quoting identifiers
- Using the correct number of arguments for functions
- Casting to the correct data type
- Using the proper columns for joins

If there are any of the above mistakes, rewrite the query. If there are no mistakes,
just reproduce the original query.

You will call the appropriate tool to execute the query after running this check.
""".format(dialect="sqlite")


def check_query(state: MessagesState):
    system_message = {
        "role": "system",
        "content": check_query_system_prompt,
    }

    # Generate an artificial user message to check
    tool_call = state["messages"][-1].tool_calls[0]
    user_message = {"role": "user", "content": tool_call["args"]["query"]}
    llm_with_tools = model.bind_tools([run_query_tool], tool_choice="any")
    response = llm_with_tools.invoke([system_message, user_message])
    response.id = state["messages"][-1].id

    return {"messages": [response]}

def should_continue(state: MessagesState) -> Literal[END, "check_query"]:
    messages = state["messages"]
    last_message = messages[-1]
    if not last_message.tool_calls:
        return END
    else:
        return "check_query"

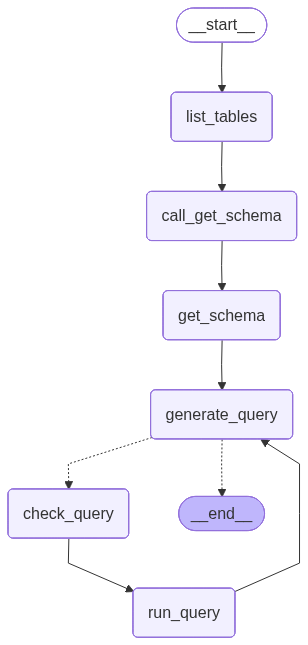

builder = StateGraph(MessagesState)
builder.add_node(list_tables)
builder.add_node(call_get_schema)
builder.add_node(get_schema_node, "get_schema")
builder.add_node(generate_query)
builder.add_node(check_query)
builder.add_node(run_query_node, "run_query")

builder.add_edge(START, "list_tables")
builder.add_edge("list_tables", "call_get_schema")
builder.add_edge("call_get_schema", "get_schema")
builder.add_edge("get_schema", "generate_query")
builder.add_conditional_edges(
    "generate_query",
    should_continue,
)
builder.add_edge("check_query", "run_query")
builder.add_edge("run_query", "generate_query")

agent = builder.compile()

import pathlib

pathlib.Path("graph.png").write_bytes(agent.get_graph().draw_mermaid_png())

question = "平均曲目时长最长的音乐类型是哪个？"

stream = agent.stream_events(
    {"messages": [{"role": "user", "content": question}]},
    version="v3",
)
for message in stream.messages:
    for token in message.text:
        print(token, end="", flush=True)

final_state = stream.output

================================ Human Message =================================

Which genre on average has the longest tracks?
================================== Ai Message ==================================

Available tables: Album, Artist, Customer, Employee, Genre, Invoice, InvoiceLine, MediaType, Playlist, PlaylistTrack, Track
================================== Ai Message ==================================
Tool Calls:
  sql_db_schema (call_yzje0tj7JK3TEzDx4QnRR3lL)
 Call ID: call_yzje0tj7JK3TEzDx4QnRR3lL
  Args:
    table_names: Genre, Track
================================= Tool Message =================================
Name: sql_db_schema


CREATE TABLE "Genre" (
	"GenreId" INTEGER NOT NULL,
	"Name" NVARCHAR(120),
	PRIMARY KEY ("GenreId")
)

/*
3 rows from Genre table:
GenreId	Name
1	Rock
2	Jazz
3	Metal
*/


CREATE TABLE "Track" (
	"TrackId" INTEGER NOT NULL,
	"Name" NVARCHAR(200) NOT NULL,
	"AlbumId" INTEGER,
	"MediaTypeId" INTEGER NOT NULL,
	"GenreId" INTEGER,
	"Composer" NVARCHAR(220),
	"Milliseconds" INTEGER NOT NULL,
	"Bytes" INTEGER,
	"UnitPrice" NUMERIC(10, 2) NOT NULL,
	PRIMARY KEY ("TrackId"),
	FOREIGN KEY("MediaTypeId") REFERENCES "MediaType" ("MediaTypeId"),
	FOREIGN KEY("GenreId") REFERENCES "Genre" ("GenreId"),
	FOREIGN KEY("AlbumId") REFERENCES "Album" ("AlbumId")
)

/*
3 rows from Track table:
TrackId	Name	AlbumId	MediaTypeId	GenreId	Composer	Milliseconds	Bytes	UnitPrice
1	For Those About To Rock (We Salute You)	1	1	1	Angus Young, Malcolm Young, Brian Johnson	343719	11170334	0.99
2	Balls to the Wall	2	2	1	U. Dirkschneider, W. Hoffmann, H. Frank, P. Baltes, S. Kaufmann, G. Hoffmann	342562	5510424	0.99
3	Fast As a Shark	3	2	1	F. Baltes, S. Kaufman, U. Dirkscneider & W. Hoffman	230619	3990994	0.99
*/
================================== Ai Message ==================================
Tool Calls:
  sql_db_query (call_cb9ApLfZLSq7CWg6jd0im90b)
 Call ID: call_cb9ApLfZLSq7CWg6jd0im90b
  Args:
    query: SELECT Genre.Name, AVG(Track.Milliseconds) AS AvgMilliseconds FROM Track JOIN Genre ON Track.GenreId = Genre.GenreId GROUP BY Genre.GenreId ORDER BY AvgMilliseconds DESC LIMIT 5;
================================== Ai Message ==================================
Tool Calls:
  sql_db_query (call_DMVALfnQ4kJsuF3Yl6jxbeAU)
 Call ID: call_DMVALfnQ4kJsuF3Yl6jxbeAU
  Args:
    query: SELECT Genre.Name, AVG(Track.Milliseconds) AS AvgMilliseconds FROM Track JOIN Genre ON Track.GenreId = Genre.GenreId GROUP BY Genre.GenreId ORDER BY AvgMilliseconds DESC LIMIT 5;
================================= Tool Message =================================
Name: sql_db_query

[('Sci Fi & Fantasy', 2911783.0384615385), ('Science Fiction', 2625549.076923077), ('Drama', 2575283.78125), ('TV Shows', 2145041.0215053763), ('Comedy', 1585263.705882353)]
================================== Ai Message ==================================

The genre with the longest tracks on average is "Sci Fi & Fantasy," with an average track length of approximately 2,911,783 milliseconds. Other genres with relatively long tracks include "Science Fiction," "Drama," "TV Shows," and "Comedy."

from langchain.tools import tool
from langgraph.types import interrupt
from langchain_core.runnables import RunnableConfig


@tool(
    run_query_tool.name,
    description=run_query_tool.description,
    args_schema=run_query_tool.args_schema,
)
def run_query_tool_with_interrupt(config: RunnableConfig, **tool_input):
    request = {
        "action": run_query_tool.name,
        "args": tool_input,
        "description": "Please review the tool call",
    }
    response = interrupt([request])
    # approve the tool call
    if response["type"] == "accept":
        tool_response = run_query_tool.invoke(tool_input, config)
    # update tool call args
    elif response["type"] == "edit":
        tool_input = response["args"]["args"]
        tool_response = run_query_tool.invoke(tool_input, config)
    # respond to the LLM with user feedback
    elif response["type"] == "response":
        user_feedback = response["args"]
        tool_response = user_feedback
    else:
        raise ValueError(f"Unsupported interrupt response type: {response['type']}")

    return tool_response


# Redefine the tool node to use the interrupt version
run_query_node = ToolNode([run_query_tool_with_interrupt], name="run_query")

from langgraph.checkpoint.memory import InMemorySaver

def should_continue(state: MessagesState) -> Literal[END, "run_query"]:
    messages = state["messages"]
    last_message = messages[-1]
    if not last_message.tool_calls:
        return END
    else:
        return "run_query"

builder = StateGraph(MessagesState)
builder.add_node(list_tables)
builder.add_node(call_get_schema)
builder.add_node(get_schema_node, "get_schema")
builder.add_node(generate_query)
builder.add_node(run_query_node, "run_query")

builder.add_edge(START, "list_tables")
builder.add_edge("list_tables", "call_get_schema")
builder.add_edge("call_get_schema", "get_schema")
builder.add_edge("get_schema", "generate_query")
builder.add_conditional_edges(
    "generate_query",
    should_continue,
)
builder.add_edge("run_query", "generate_query")

checkpointer = InMemorySaver()
agent = builder.compile(checkpointer=checkpointer)

question = "平均而言，哪种音乐类型的音轨最长？"

stream = agent.stream_events(
    {"messages": [{"role": "user", "content": question}]},
    config,
    version="v3",
)
for message in stream.messages:
    for token in message.text:
        print(token, end="", flush=True)
if stream.interrupted:
    action = stream.interrupts[0]
    print("INTERRUPTED:")
    for request in action.value:
        print(json.dumps(request, indent=2))

...

INTERRUPTED:
{
  "action": "sql_db_query",
  "args": {
    "query": "SELECT Genre.Name, AVG(Track.Milliseconds) AS AvgLength FROM Track JOIN Genre ON Track.GenreId = Genre.GenreId GROUP BY Genre.Name ORDER BY AvgLength DESC LIMIT 5;"
  },
  "description": "Please review the tool call"
}

from langgraph.types import Command

stream = agent.stream_events(
    Command(resume={"type": "accept"}),
    # Command(resume={"type": "edit", "args": {"query": "..."}}),
    config,
    version="v3",
)
for message in stream.messages:
    for token in message.text:
        print(token, end="", flush=True)
if stream.interrupted:
    action = stream.interrupts[0]
    print("中断：")
    for request in action.value:
        print(json.dumps(request, indent=2))

================================== Ai Message ==================================
Tool Calls:
  sql_db_query (call_t4yXkD6shwdTPuelXEmY3sAY)
 Call ID: call_t4yXkD6shwdTPuelXEmY3sAY
  Args:
    query: SELECT Genre.Name, AVG(Track.Milliseconds) AS AvgLength FROM Track JOIN Genre ON Track.GenreId = Genre.GenreId GROUP BY Genre.Name ORDER BY AvgLength DESC LIMIT 5;
================================= Tool Message =================================
Name: sql_db_query

[('Sci Fi & Fantasy', 2911783.0384615385), ('Science Fiction', 2625549.076923077), ('Drama', 2575283.78125), ('TV Shows', 2145041.0215053763), ('Comedy', 1585263.705882353)]
================================== Ai Message ==================================

The genre with the longest average track length is "Sci Fi & Fantasy" with an average length of about 2,911,783 milliseconds. Other genres with long average track lengths include "Science Fiction," "Drama," "TV Shows," and "Comedy."
